ZING EAR spring slide switch black micro Switches

SKU: 10066 Category: Product ID: 2865

Description

China suppliers ZING EAR  spring slide switch black micro Switch

Product Description

Feature:

-Tight Configuration,Small Contact Gap , Snap Action

-Long Life, High Reliability

-Global Safety Approvals

-Variety of Terminals

-Wide Range Operating Force

-Wide Range Temperature Grade

-With Optional PTI Grade

-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,

Communication Equipments.

-Variety of Levers



Parameters:

           Rating p1 0.1A 48VDC/125VAC(Glod Plated Optional)
03 1A/3A 125VAC
Operating Frequency Electrical 10~30cycles/minute
Mechancial 120cycles/minute
Contact Resistance(Initiative) 100mΩMax(Depends on P/Ns)
Insulation Resistance (at 500VDC) at 500VDC 100MΩ Min
Dielectric Strength AC600V RMS (50~60Hz)
Storage Temperature -40°C~+85°C
Storage Humidity 85%RH Max
Service  Life Electrical 6,000~100,000cycles/Depend on part No.
Mechanical 5,000,000/1,000,000cycles(optional)
Unit Net Weight About 0.5g(straight PCB type without lever)

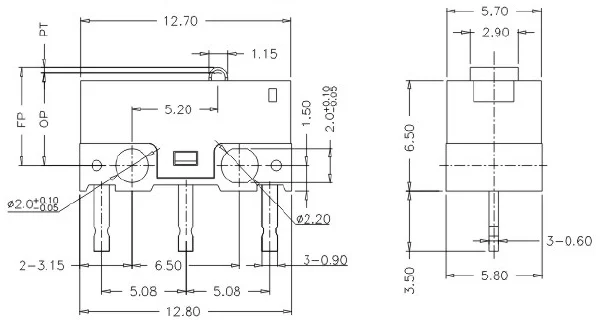

Drawing:
Related Product

 China suppliers ZING EAR spring slide switch black micro SwitchChina suppliers ZING EAR spring slide switch black micro SwitchChina suppliers ZING EAR spring slide switch black micro Switch

Additional information

Protection Level

IP40

Operating Temperature

-25℃~125℃- -25℃~125℃

Place of Origin

Guangdong- China

Electrical life

25-000-000 cycles Min.

Product Name

China suppliers ZING EAR spring slide switch black micro Switch

Circuit Code

SPDT

Terminal Type

PCB Solder Screw Wire Leads terminals

Model Number

G10 micro switch- G10

Brand Name

ZING EAR

Payment Terms

T/T-Western Union

Operating Force

50gf 100gf 150gf max.

Max. Voltage

12VDC 36VDC 48VDC 125VAC 250VAC

Max. Current

0.1A 1A 3A

Lever type

Long Straight lever- Pin Plunger- Simulated Roller lever
