Widely used in appliance and industry control SPDT subminiature micro switches

SKU: 10042 Category: Product ID: 2753

Description

            2019 widely used in appliance and industry control SPDT subminiature micro switch



Product Description



Feature



-Small Compact Size

-Global safety approvals

-Long life and High Precision and Reliability

-Variety of levers optional

-Variety of Terminals

-Widely used in Appliance and Industrial Control etc.

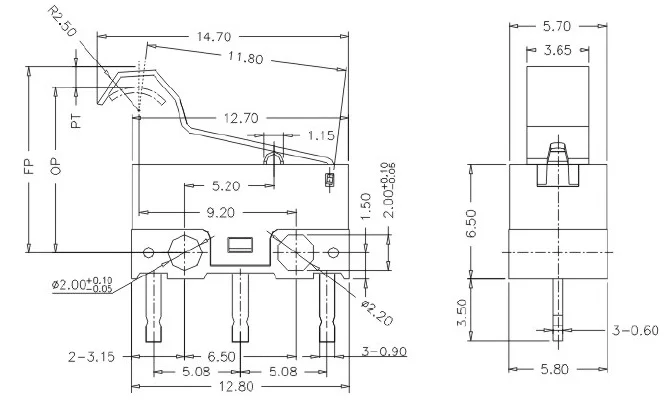

Drawing

  2019 widely used in appliance and industry control SPDT subminiature micro switch

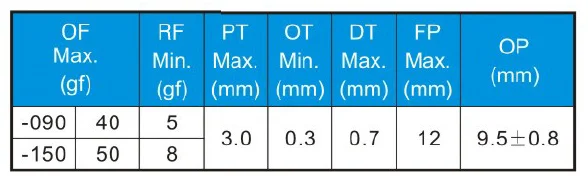

Operating Parameters
2019 widely used in appliance and industry control SPDT subminiature micro switch


Parameters

Rating P1 0.1A 48VDC/125VAC (Gold plated optional)
03 1A/3A 125VAC
Operation Frequency

Electrical
10~30 cycles/min
Mechanical 120 cycles/min
Contact Resistance(Initial Value) 100mΩ Max(Depends on P/Ns)
Insulation Resistance 500VDC At 500VDC,100MΩ Min.
Dielectric Strength AC 600V RMS (50-60Hz)
Storage Temperature -40°C~+85°C
Storage Humidity 85%RH Max
Service Life Electrical 6,000~50,000 cycles(Depends on P/Ns)
Mechanical 1,000,000 cycles
Weight About 0.5g(Straight PCB type without lever)
Material Gold plated/Silver Plated/Ag Contact



Application

-Electrical Devices
-Mouse

-Electric Knife
-Calculator

-Telephone
-Home Appliance

-Alarm
-Tester Machine

Additional information

Protection Level

IP00

Operating Temperature

-40℃~+85℃

Mechanical life

1-000-000 cycles (5-000-000 cycles Optional)

Place of Origin

Guangdong- China

Electrical life

6-000~100-000 cycles(depends on P/Ns)

Rating

0.1A/3A 125VAC 48VDC

Model Number

G10 series

Terminal

Straight PCB Terminals

Brand Name

ZING EAR

Function

SPDT

Qualification

ISO9001- TS16949

Operating force

30gf max

Max. Voltage

125VAC

Max. Current

3A

Application

Home appliance- Telephone- Electrical device- Tester machine etc.

Lever type

Simulated Roller Lever
