Waterproof mini micro switch with lever for car

SKU: 10038 Category: Product ID: 2711

Description

Sealed Burgess Mini Micro Switch



Product Description

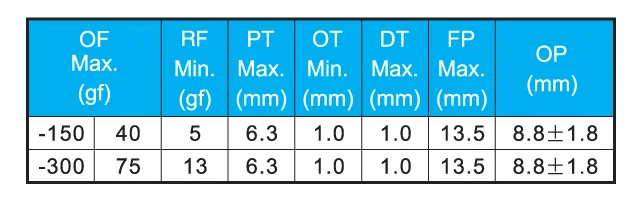

Operating Characteristics

 Greetech factory waterproof mini micro switch with lever for car


Greetech factory waterproof mini micro switch with lever for car
Parameters
Rating 0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5.
Operating Frequency Electrical 0.1A-120/3A-10~30 cycles/minute
Mechanical 120 cycles/minute
Contact Resistance(Initiative)   100mΩ Max
Insulation Resistance(at 500VDC)   100MΩ Min
Vibration durability   10~55Hz, move 0.75mm(p-p)
Dielectric Strength   500VAC (50~60Hz)
Storage Temperature   -40-+85
Storage Humidity   85% RH Max
Service Life Electrical 6,000~500,000/cycles(Depend on part number)
Mechanical Min.500,000/cycles
Application



-Car                                                      -Communication

-Air-conditioner                                     -Toy

-Electric tooth brush                              -Home Appliance

                                                             -Motor Controller

Related products

 Greetech factory waterproof mini micro switch with lever for car



 Greetech factory waterproof mini micro switch with lever for car



 Greetech factory waterproof mini micro switch with lever for car

 Greetech factory waterproof mini micro switch with lever for car

Packaging & Shipping



Greetech factory waterproof mini micro switch with lever for car

Additional information

Protection Level

IP67

Operating Temperature

25℃~+125℃

Mechanical life

500-000cycles

Place of Origin

Guangdong- China

Electrical life

10-000-100-000 cycles (Depend on Part No.)

Model Number

G9 Series

Brand Name

ZING EAR

Max. Voltage

125/250VAC-48VDC

Operating force

300gf max w.o lever

Max. Current

0.1A~6A

Contact Resistance

100m Ohm Max

Insulation Resistance

100M Ohm Min

Application

Car- air conditioner electric tooth brush -toys motor control

Lever type

More options
