Snap action basic micro switches for appliance

SKU: 10047 Category: Product ID: 2802

Description

Greetech best price snap action basic micro switch for appliance

Product Description

Feature:

-Tight Configuration,Small Contact Gap , Snap Action

-Long Life, High Reliability

-Global Safety Approvals

-Variety of Terminals

-Wide Range Operating Force

-Wide Range Temperature Grade

-With Optional PTI Grade

-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,

Communication Equipments.

-Variety of Levers

Parameters:

Operating Speed 0.1mm-1m/s( Related with actuator forms)
Operating Frequency Mechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation Resistance ≥100MΩ (500VDC)
Contact Resistance ≤100MΩ (Initial value)
Test Voltage Between each terminals of the same polarity AC1000V,50/60HZ, 1min.
Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts AC1500V, 50/60HZ, 1min.
Vibration Resistance 10-55HZ, 1.5mm Double amplitude
Shock Resistance Destruction: OF>0.5N:1000m/s2 (approx.100G)max.
Destruction:OF>0.5N:200m/s2 (approx.20G)max.
Serivece Life Mechanical ≥ 10,000,000cycles or 1,000,000cycles
Electrical ≥ 50,000cycles or 100,000cycles
Weight Approx. 6.2g(No lever).
Trade Terms 1.The price is based on FOB Shenzhen or Hongkong or EXW factory
2.MOQ:5000pcs
Payment:T/T payment,50% deposit before production, balance 50% before shipment
Certificates ISO9001&TS16949
ENEC &CQC
RoHS & Reach

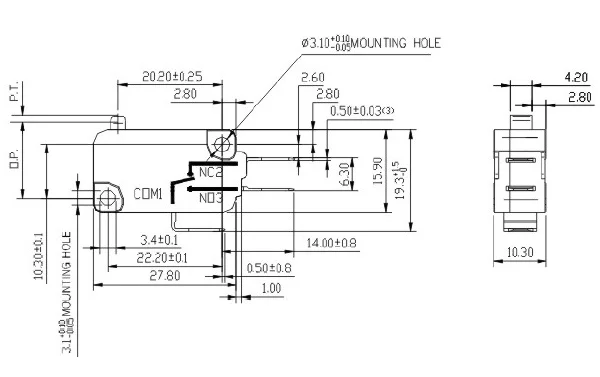

Drawing:

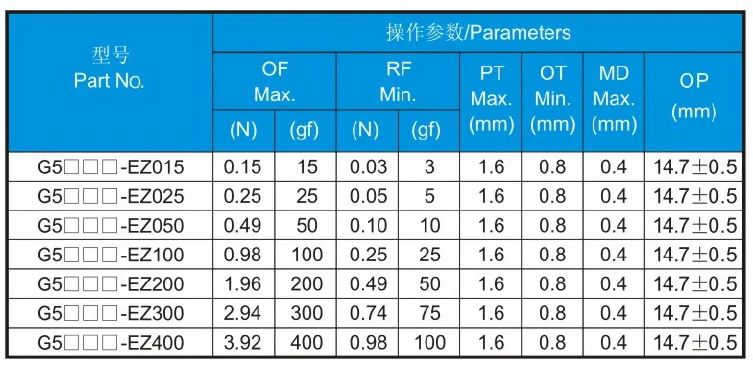

Operating Charateristics:

Related Product

 Greetech best price snap action basic micro switch for applianceGreetech best price snap action basic micro switch for applianceGreetech best price snap action basic micro switch for appliance

Additional information

Protection Level

IP00

Operating Temperature

-40℃~150℃

Place of Origin

Guangdong- China

Electrical Rating 1

ENEC/CQC:16(4)A 250VAC u 5E4

Circuit Code

SPDT

Terminal Type

Quick connect terminals

Max Operating Force

300gf

Model Number

G5T16 Series

M-life

Over 10-000-000cycles

Vibration Resistance

10-55HZ-1.5MM Double amplitude

E-life

Over 50-000 cycles

Brand Name

ZING EAR

Max. Voltage

250VAC

Max. Current

26A

Temperature Grade

12T125
