Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switches

SKU: 10040 Category: Product ID: 2697

Description

2019 New Design Hot Selling Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switch

Product Description

Feature:

-Tight Configuration,Small Contact Gap , Snap Action

-Long Life, High Reliability

-Global Safety Approvals

-Variety of Terminals

-Wide Range Operating Force

-Wide Range Temperature Grade

-With Optional PTI Grade

-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,

Communication Equipments.

-Variety of Levers



Parameters:

           Rating p1 0.1A 125/250VAC 48VDC/Glod Plated Contact Optional
05



ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120

Operating Frequency Electrical 10~30cycles/minute
Mechancial 120cycles/minute
Contact Resistance(Initiative) 100mΩMax/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC) 100M Ω Min
Dielectric Strength AC1,000V RMS (50~60Hz)
Storage Temperature -25°C~+120°C
Storage Humidity 85%RH Max
Service  Life Electrical 10,000cycles/Depend on part No.
Mechanical 500,000cycles
2019 New Design Hot Selling Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switch 2019 New Design Hot Selling Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switch 2019 New Design Hot Selling Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switch 2019 New Design Hot Selling Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switch 2019 New Design Hot Selling Sealed Housing Plastic Waterproof IP67 Electric Parts For Automotive Control Micro Switch

Additional information

Protection Level

IP40 IP67

Operating Temperature

-25℃~125℃- -25℃~125℃

Place of Origin

Guangdong- China

Product Name

Sealed subminiature electric snap action micro switches with lever

Circuit Code

SPDT SPST SPST-NC SPST-NO

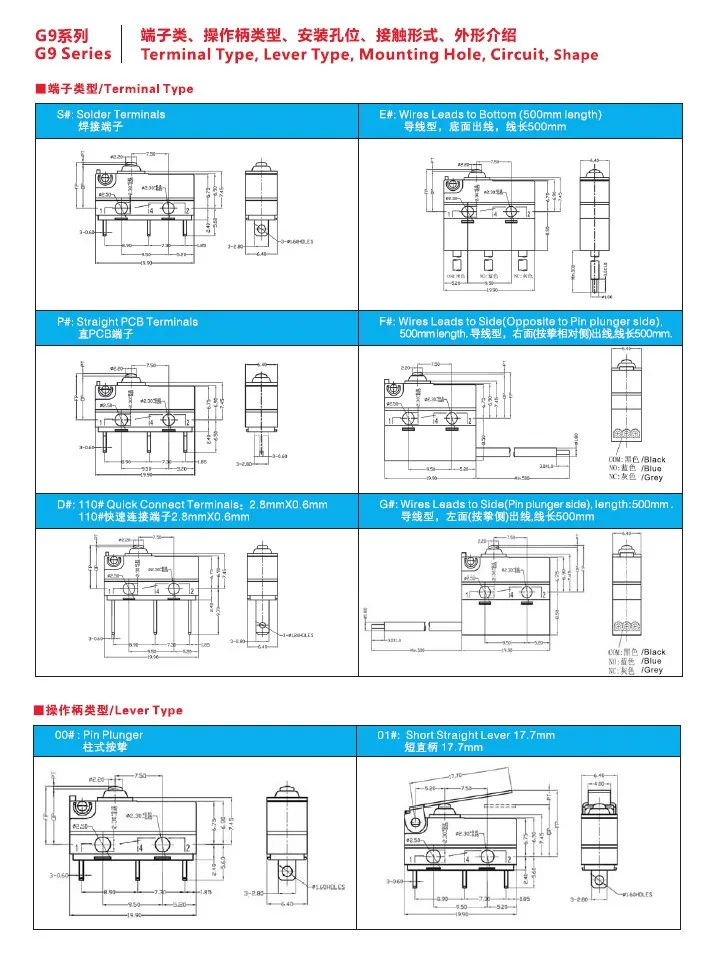

Terminal Type

Wires leads from side (500mm)

Model Number

G9 micro switch- G9

Brand Name

ZING EAR

Payment Terms

T/T-Western Union

Operating Force

300gf max w/o lever

Max. Voltage

250VAC

Max. Current

5A

Housing material

PET- 94V2

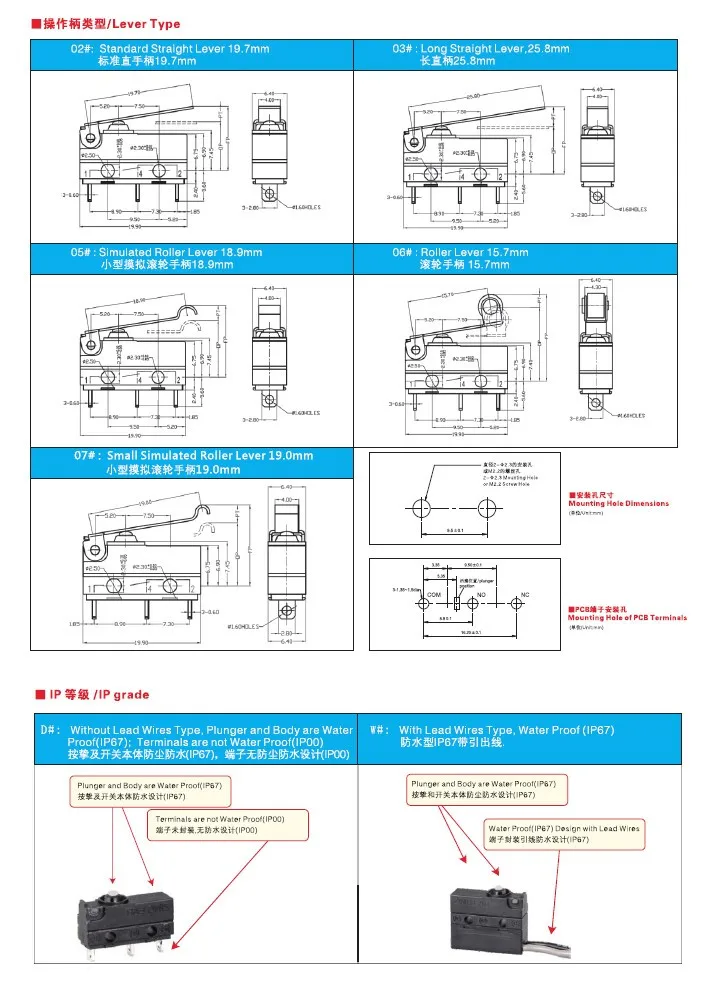

Lever type

Straight lever
