Momentary 0.5A/5A 250V types of electrical t85 0.5A 250V wire leads switches micro plunger

SKU: 10085 Category: Product ID: 3021

Description

           Momentary 0.5A/5A 250V types of electrical t85 0.5A 250V wire leads switch micro plunger



Product Description



Feature



-Compact Size and Tight Configuration

-Global safety approvals

-Long life and High Precision and Reliability

-Dust and Water Proof Design (IP67)

-DPDT Double-Break Type

-Variety of Mounting Method Operation Type

-Widely used in Industrial Control etc.

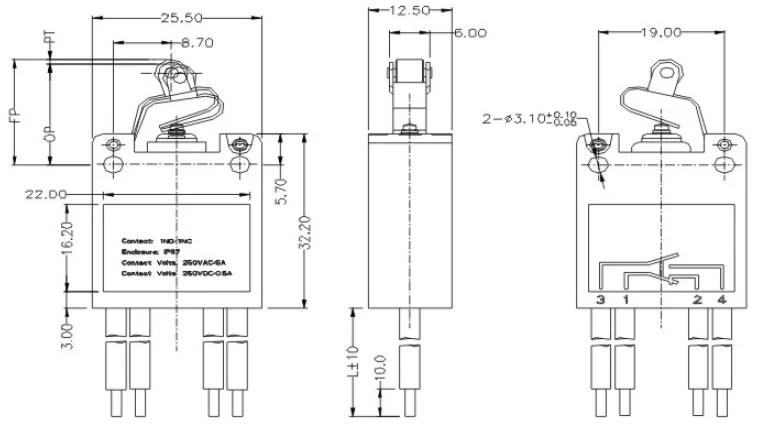

Drawing

  Momentary 0.5A/5A 250V types of electrical t85 0.5A 250V wire leads switch micro plunger

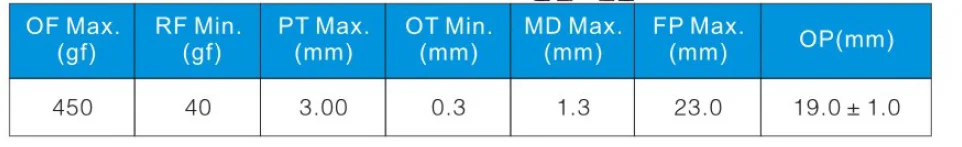

Operating Parameters
Momentary 0.5A/5A 250V types of electrical t85 0.5A 250V wire leads switch micro plunger


Parameters

Rating 05 0.5A 250VDC
0.5A/5A 250VAC
Operating Frequency

Electrical
10~30 cycles/minute
Mechanical 120 cycles/minute
Contact Resistance(Initiative) 30~100mΩ Max
(Depends on P/Ns)
Insulation Resistance 100MΩ Min(at 500VDC)
Dielectric Strength AC 750V RMS (50-60Hz)
Storgage Temperature

 -25°C~+85°C
Storage Humidity 85%RH Max
Service Life Electrical 50,000 cycles(Depends on P/Ns)
Mechanical 2,000,000 cycles
Weight Approx.110g(8 wires)
Material Silver contacts



Application



-Electrical Actuators

-Vavle Control

-Power Station Control

-Industrial Auto Control

-Nuclear Power Facilities

-Automobile Production Line

Additional information

Protection Level

IP67

Operating Temperature

-25℃~+85℃

Mechanical life

2-000-000 cycles

Place of Origin

Guangdong- China

Wire type

Wire leads to the bottom

Electrical life

50-000 cycles(depends on P/Ns)

Rating

0.5A/5A 250VAC 250VDC

Model Number

G1105-35003D01E1

Brand Name

ZING EAR

Function

DPDT

Qualification

ISO9001- TS16949

Max. Voltage

250VAC

Operating force

450gf max

Max. Current

0.5A/5A

Application

Electrical Actuators- Valve Control-Automobile production line- etc.

Lever type

Roller lever
